Advanced Transformer Infrastructure (ATI)™
Products
GRID20/20’s Advanced Transformer Infrastructure (ATI) solution consists of OptaNODE hardware and software components. Solely conceived to solve the industry’s intra-grid monitoring needs in a cost-effect manner. Thereby aiding operators to cost-effectively manage our emerging Clean Tech SuperGrid®.
Maximize Grid Reliability Learn more »
GRIDWIDE FIRE-SPY™ Learn more »

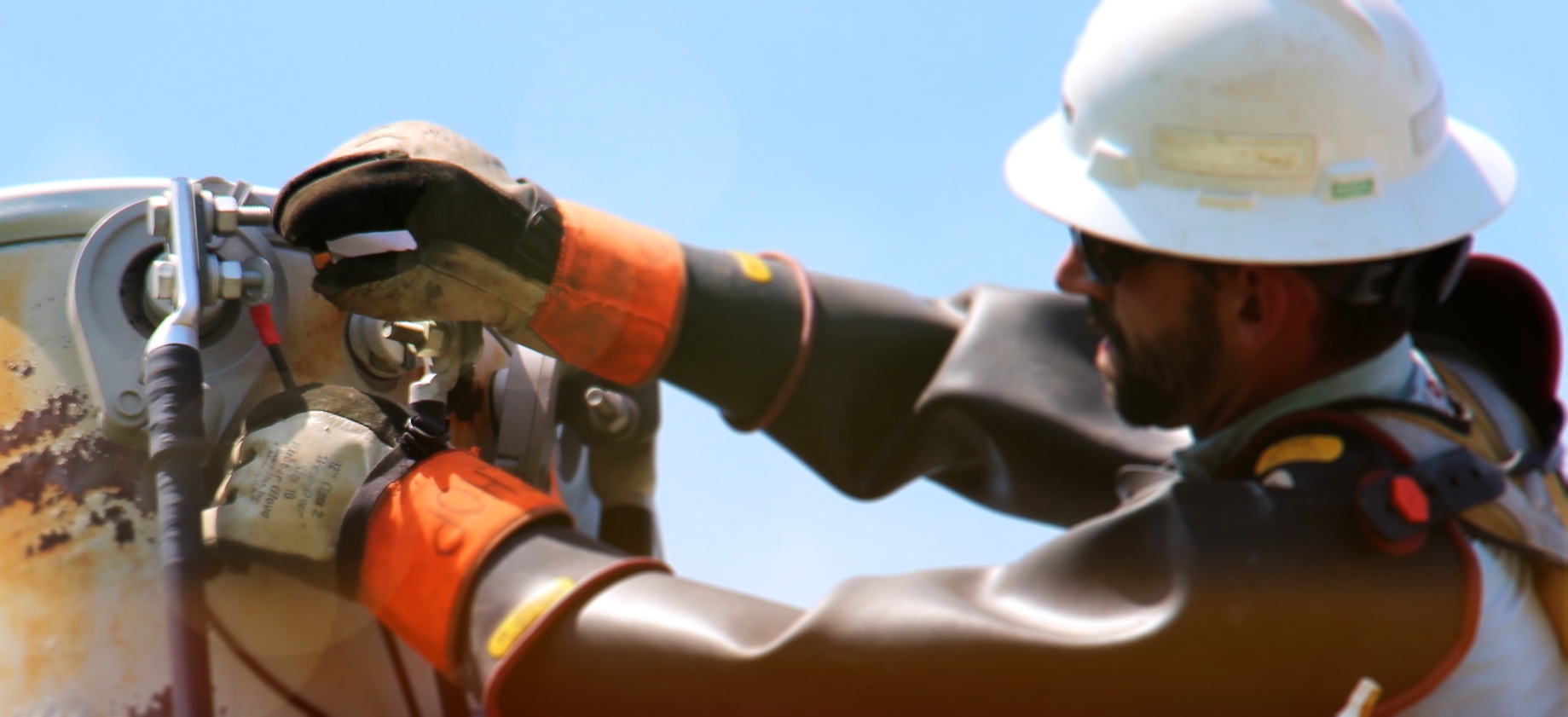

Fastest installation time in the market
- Highly accurate on small & large transformers
- Simple, fast, plug & play installation
- Instant data availability
OptaNODE® Best in Class integrated solution
The OptaNODE® family of products provides the key enablers for converting standard distribution transformers into Smart Transformers. The solution can be easily deployed stand-alone, to immediately provide highly accurate visibility into the Distribution Grid; or it can be combined with existing AMI networks and SCADA systems to achieve a genuine comprehensive Smart Grid experience.
Smart Devices
OptaNODE® DTM devices are specially designed to monitor the performance of distribution transformers, while leveraging their strategic location within the grid.
Communications
Equipped with two-way communications and onboard data storage, OptaNODE® DTM devices provide vital intra-grid information.

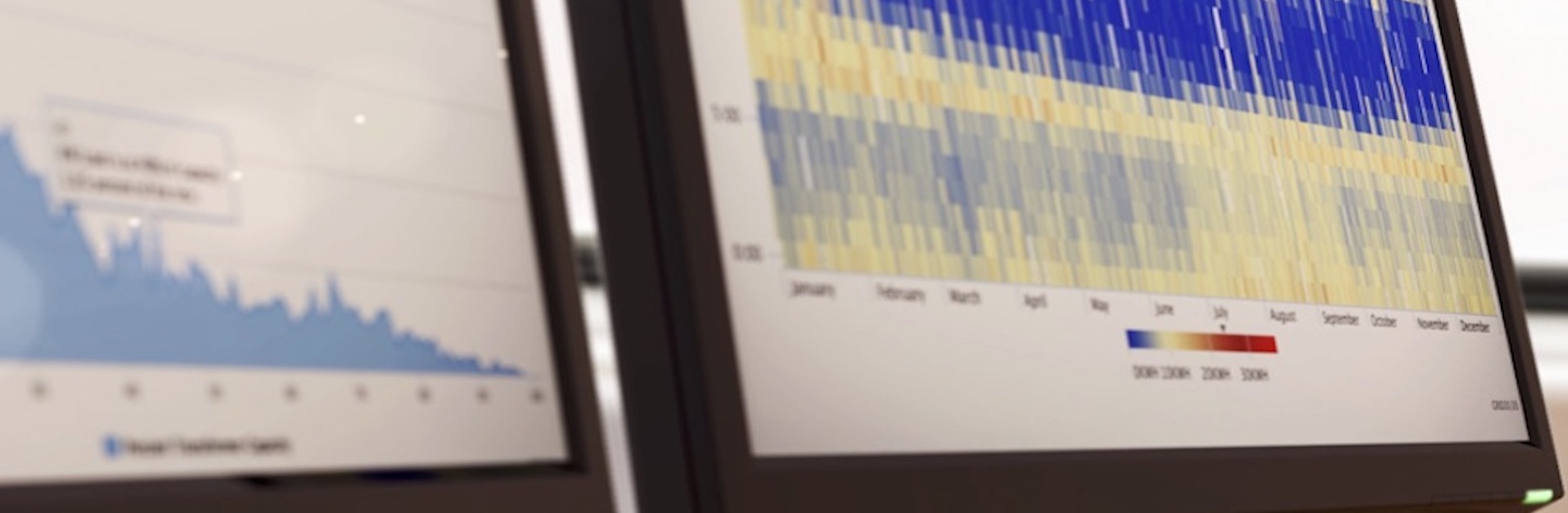

Data Analytics
OptaNODE® HESS allows users to achieve a myriad of functions within one consolidated system, transforming granular data into actionable information.

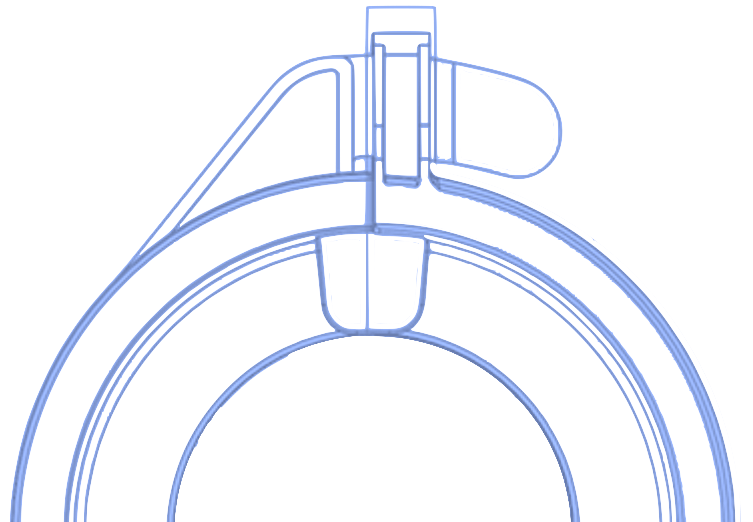

Patented Sensing Technology
GRID2020's exclusive technology combines unique key features
- ANSI class accuracy
- Exceptionally wide sensing range
- Hinged, open housing & unique form factor

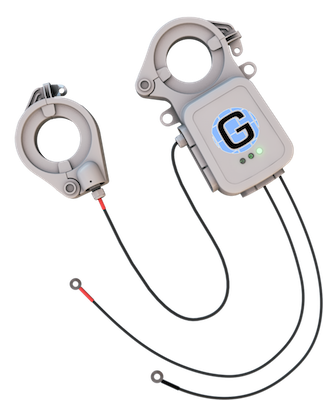

OptaNODE® DTM
Single-phase Distribution Transformer Monitor
The single phase Distribution Transformer Monitor consists of accurate and patented sensing, metrology and communications components, combined into a compact and lightweight self-contained device. It installs in minutes, attaching to the transformer by means of its integrated magnets.
2015 SMART GRID PRODUCT OF THE YEAR
2015 FIERCE ENERGY DTM INNOVATION AWARDS RECIPIENT

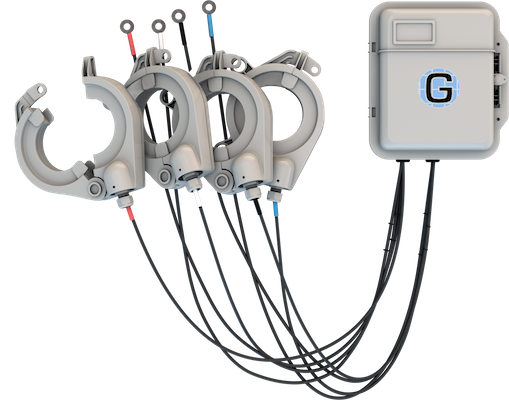

OptaNODE® PDTM
Poly-phase Distribution Transformer Monitor
The Poly-phase Distribution Transformer Monitor (PDTM) is a robust, flexible and rapidly deployable device, designed for use in both, three-wire and four-wire applications. It supports the optional use of external antennas, and may be installed using its integrated magnets or optional pole mounting kit.

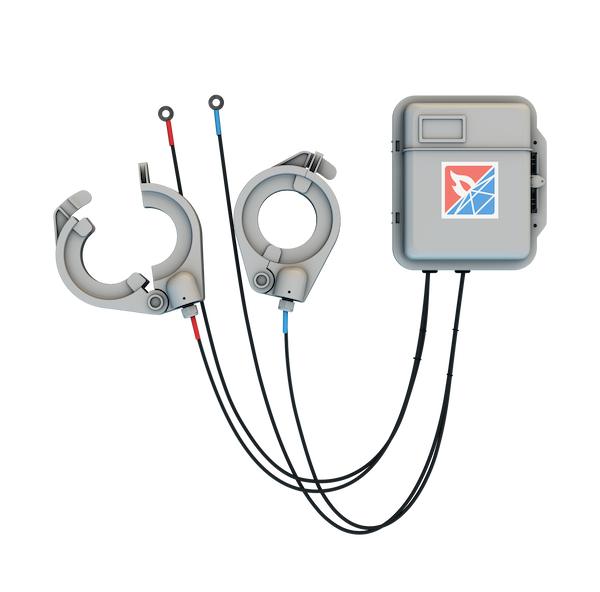

GFS
GRIDWIDE FIRE-SPY™
The GRIDWIDE FIRE-SPY (GFS) sensor module adds fire and wildfire prevention and detection capabilities to the OptaNODE DTM.
Temp
Humidity
Flames
Smoke
- Flexible communications options
- Industry standard protocols
- Onboard data storage
- OTA activation, configuration & upgrades
OptaNODE® DTM & PDTM devices incorporate state-of-the-art design, engineering, and manufacturing processes, thereby ensuring high versatility, and durability.
- Non-corrosive rugged polymer design
- ISO 9001 manufacturing
- Wireless cellular carriers certifications
- Standards compliant
- Designed to meet applicable ANSI & IEC industry norms

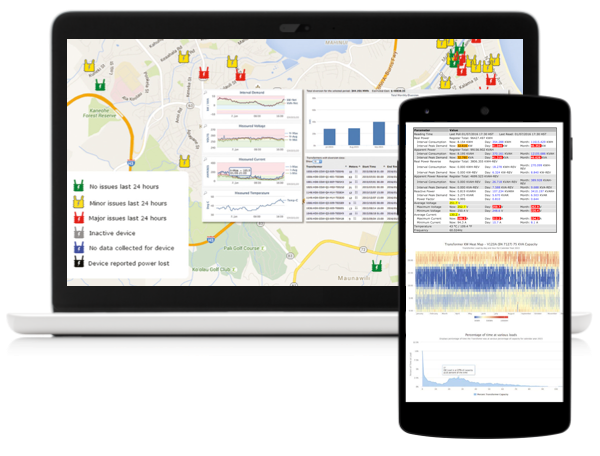

OptaNODE® HESS
Data Collection Engine & Analytics
GRID20/20’s versatile software platform consists of a Data Collection Engine, a Monitoring and Management Tool for device deployment, operation and maintenance, and a Data Analytics Portal which provides timely, accurate information from within the heart of the distribution grid.
- Robust, Scalable Java™ Server Architecture
- Collection Engine & Data Warehouse
- Monitoring & Management Platform
- Data Visualization & Download
- Web Based, Secure Graphical User Interface
- Web API for 3rd Party Platforms Integration
- Energy Loss
- Feeder Voltages
- Transformer Loading
- Exception Reporting via Automated Alerts
OptaNODE® HESS Servers are collocated in a state-of-the-art data center, providing hardened and redundant infrastructure, security and compliance. GRID20/20 protects the security of collected data by encrypting the information during transmission. All data is stored in a high security data center with multiple layers of access control.
